Dimension
Removal Rating:About 5 μm
Length:5''(127mm),10''(254mm),20"(508mm),30"(762mm),40"(1016mm),50"(1270mm),60"(1524mm)（Any length can be customized）
OD: φ68-70mm
ID：φ28mm

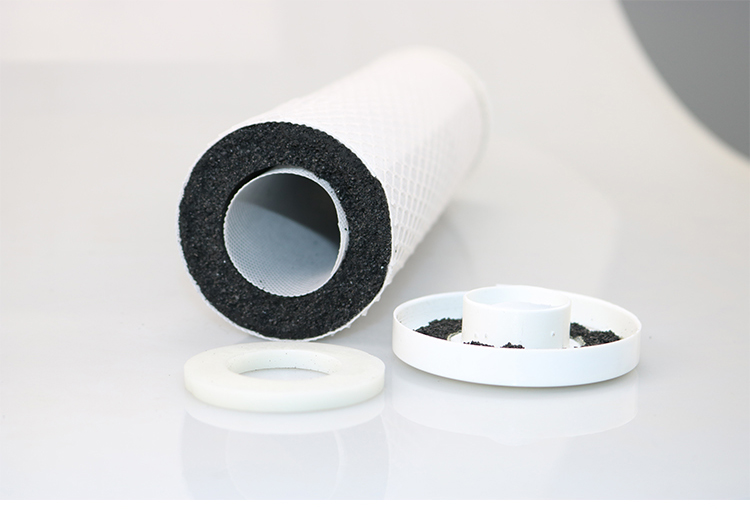

Material
of
Constructions

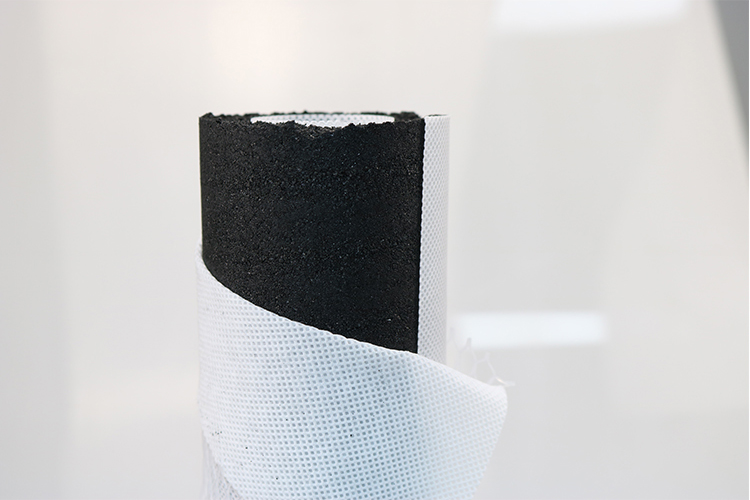

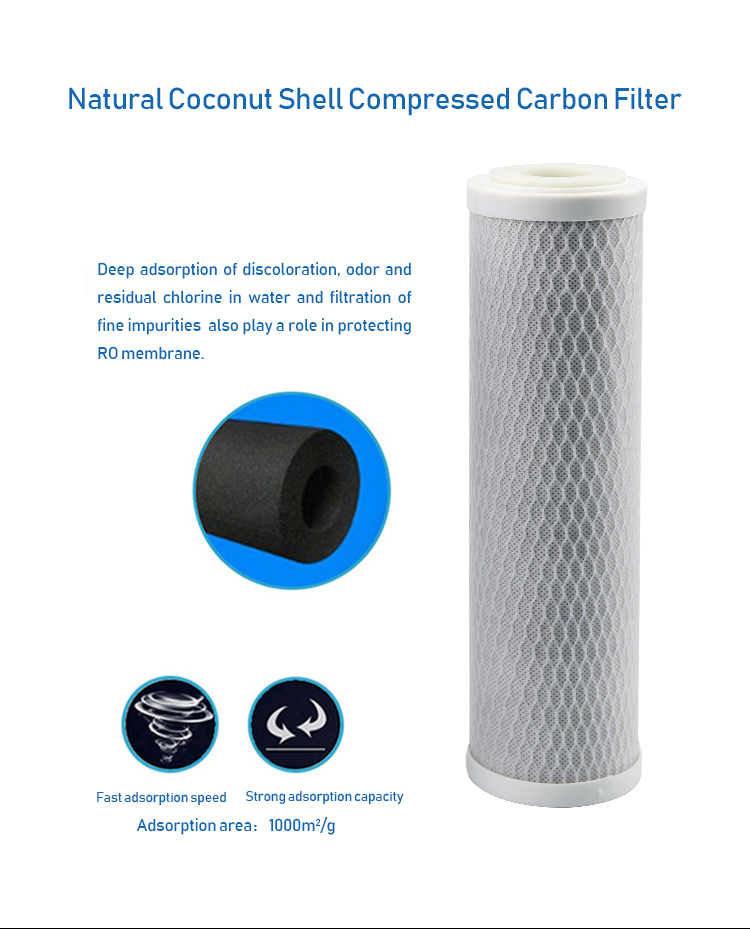

Media：acid washed bituminous GAC，water washed coconut shell GAC
End Cap：Polypropylene（PP）
Gasket：Silicone，EPDM，NBR，Viton
Core：Polyethylene（PE）
Performance
Max.Operating Temperature：52℃
Max.Operating DP：7Bar@20℃
